Accessories
Lijiang River tube · 16×16mm
Type: LR1 / LR3 / LR1s
Image 1 of 5
Select the main image to view it at full size.

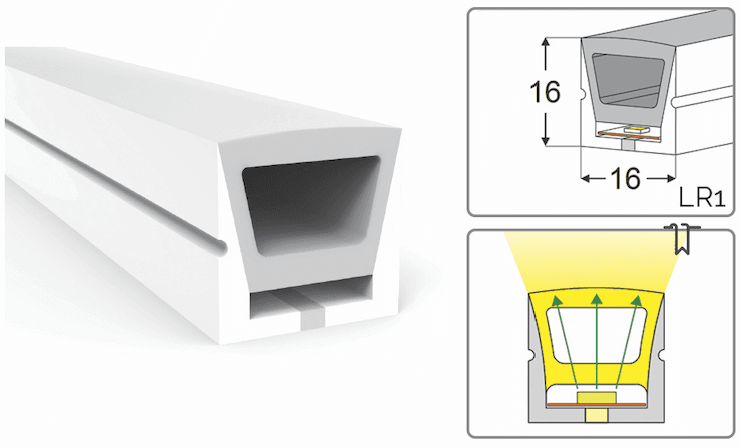

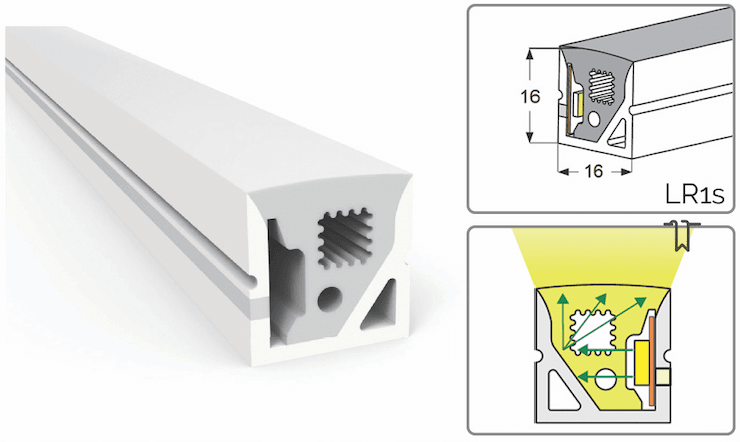

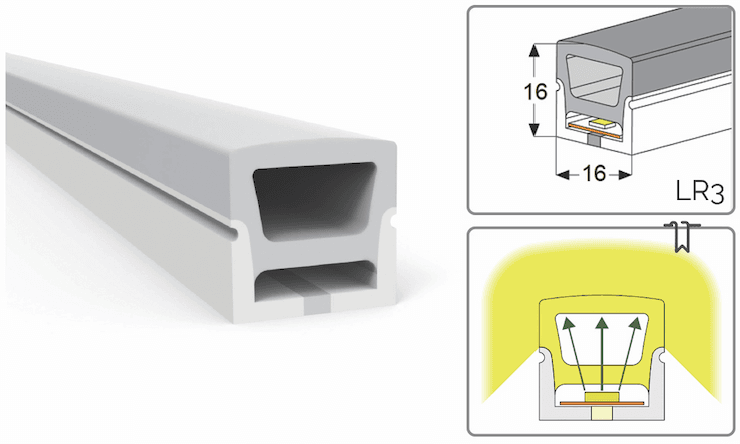

Midooc Silicone Material Flexible LED Neon Linear Tube 16*16mm
Key specifications
- Size
- 16*16mm
- Operating Voltage
- Optional
- Bending Direction
- VB (LR1 / LR3 ) / HB ( LR1s )
- Material
- Silicone
Contact our team about configuration, samples and quotations. Your product name and model will be included in the email link on the contact page.
The details
Specifications
Product information. Confirm the selected configuration before ordering.
Identification
- Product name
- Lijiang River Range Silicone Neon Flex Tube 16*16mm
- Type
- LR1 / LR3 / LR1s
Physical
- Material
- Silicone
- Size
- 16*16mm
- PCB Width
- 10 mm
- Weight
- 185 g/m (LR1), 180 g/m (LR3), 230 g/m (LR1s)
Electrical
- Operating Voltage
- Optional
Light
- Beam Angle
- 120° (LR1 / LR1s ) / 180° (LR3)
Installation
- Bending Direction
- VB (LR1 / LR3 ) / HB ( LR1s )
Product
- Item
- Lijiang River Range
- Type
- LR1 / LR3 / LR1s

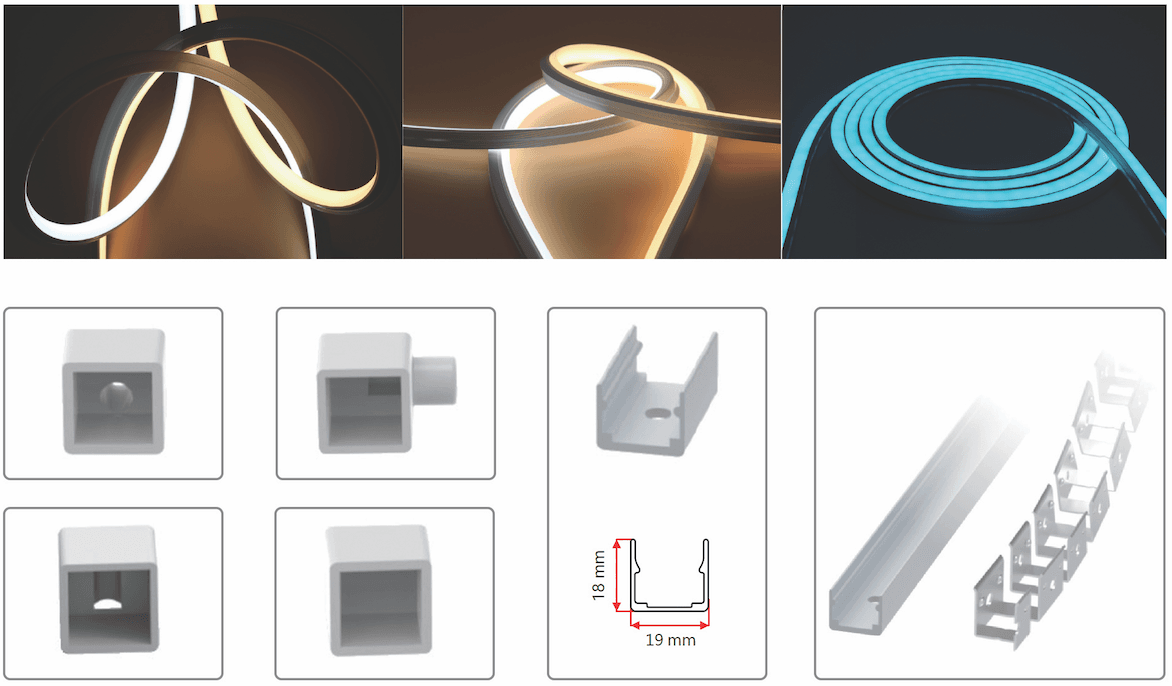

Complete the system
Accessories
Discuss compatibility and the required quantities with your selected configuration.
- Top End ( Direct or Side )
- End Cap
- Aluminum Clip
- Aluminum Profile
- Flexible Profile
Accessories
Dujiang Dam tube · 20×20mm
Type DD1 / DD3
- Size
- 20*20mm
- Bending Direction
- VB ( DD1 ) / HB ( DD3 )
- PCB Width
- 10/12 mm (DD1), 10 mm (DD3)
Accessories
Gardens of Suzhou tube · 12×12mm
Type GS1 / GS3
- Size
- 12*12mm
- Bending Direction
- VB
- PCB Width
- 8 mm
Accessories
Grand Canal neon flex · 70×30mm
Type GC
- Size
- 70*30mm
- Bending Direction
- VB
- PCB Width
- 30 mm
